6 Pcs 12Amp Power Relay Switch 24V DC Relay Coil, 5 Pin SPDT 1NO 1NC with Test Button, LED Module Light, Socket Base, DIN Rail

flash sale iconLimited Time Sale
Until the end
02
06
47

$27.59 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $45.99
quantity

Product details

Management number 208126858 Release Date 2026/03/22 List Price $18.40 Model Number 208126858
Category

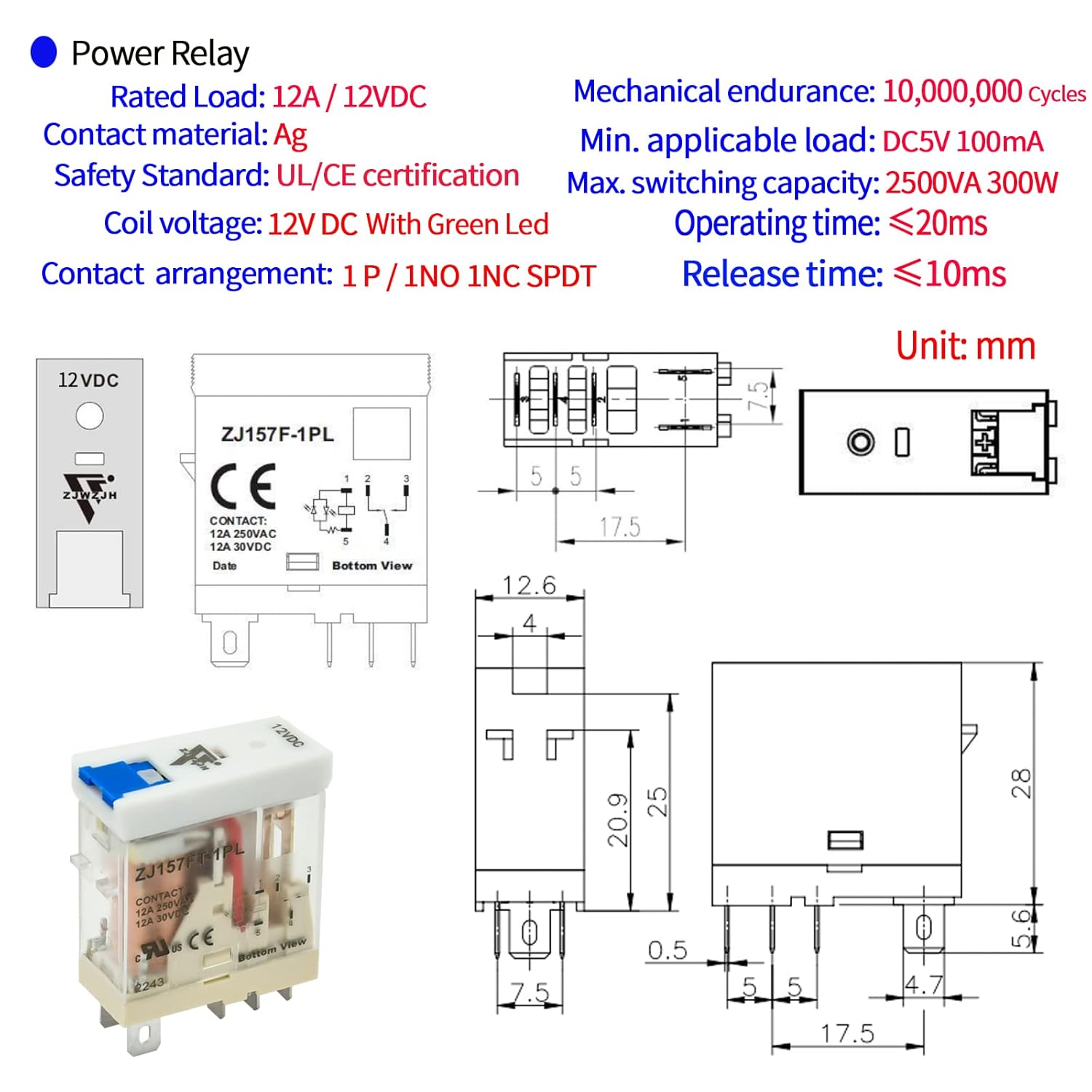

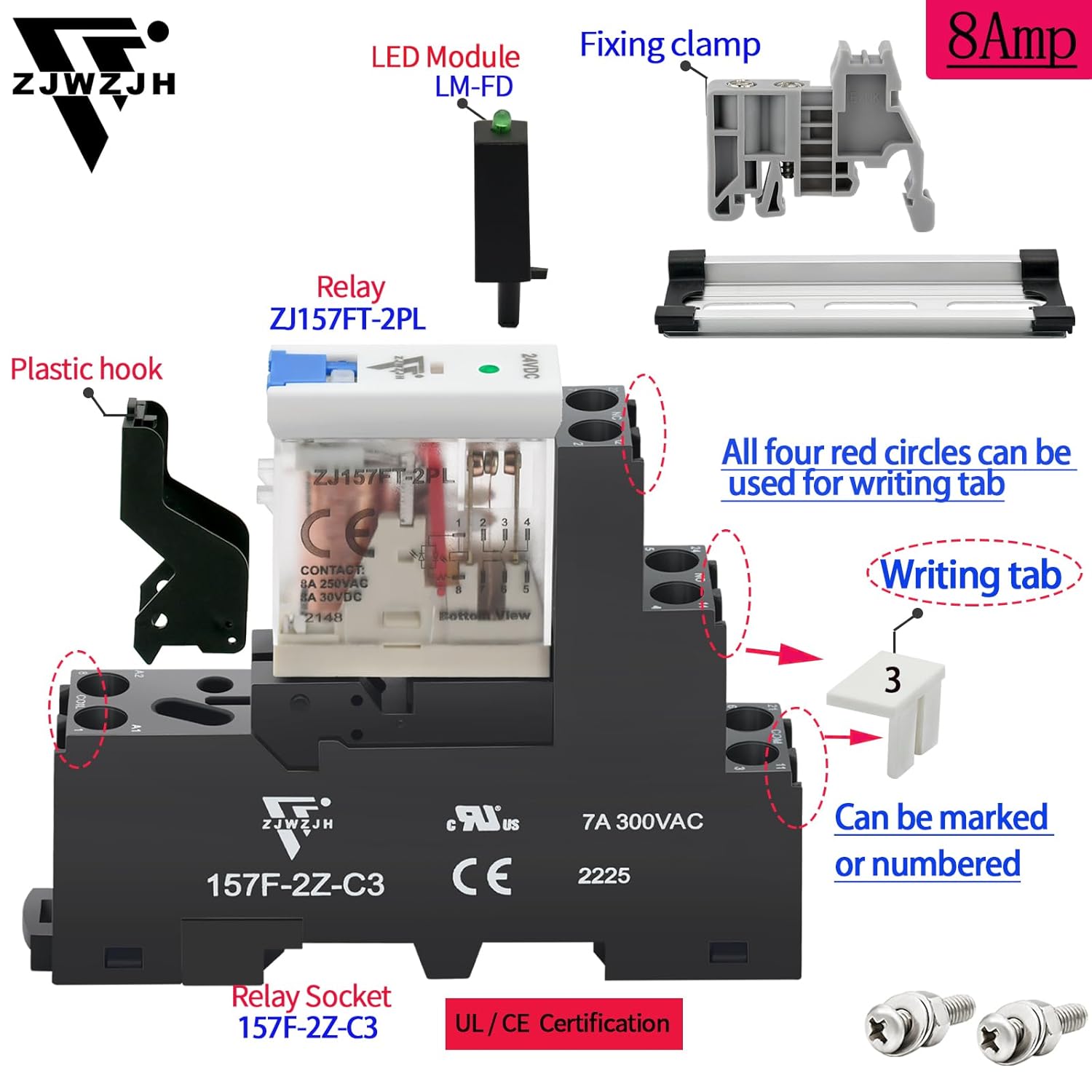

Package include : Package Content : 6 Electromagnetic Relay, 6 Socket, 2 x Fixing clamp , 1 x DIN Rail, 4 x Screws. Relay Features 1.Small volume, 38.8*12.6*30.4mm, Easy installation 2.Get an electric shock load big: 12A3.[Test key] can be used to manually adjust the instantaneous change of contact state.4.[Frosted shell] The relay adopts a frosted upgraded shell with a toothed structure at the top to increase friction and facilitate plugging.5.[See for safe use of electricity] LED indicator, red represents AC, green represents DC.6.[High quality materials] The relay is made of high quality materials with high sensitivity, strong conductivity, high current carrying capacity and stable overall performance.Contact DataRated Load:1NO 1NC SPDT,12A 250VAC /12A 30VDCMechanical endurance:10,000,000 Times;Electrical endurance:100,000 TimesRated carry current:8 AmpsMax. contact voltage:AC250V,DC30VMax. contact current:12AMax. contact voltage:AC250V,DC30VMax. contact current:12AMax. switching capacity: 1250VA 150WCharacteristicsOperating time ≤20msRelease time ≤10msInsulation resistance ≥1000mΩ (500VDC)Ambient operating temperature:-40℃~+70℃Weight: 123gAmbientl humidity:5%~85%RH

  • Our 24V Relay Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.
  • 24VDC Relay, Contact: SPDT 1 Normally Closed + 1 Normally Open,1 Poles. Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.
  • The relay is equipped with a green LED light and a visual window to check the contact status. The shell is transparent frosted and non slip.
  • Package: 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
  • The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Manufacturer ZJWZJH
Item model number ZJ157FT-1P 24V 6
Package Dimensions 6.3 x 4.33 x 2.24 inches; 1.25 Pounds
